SBM-XL S2B2

The system ensures improved surface quality for steel parts as well as consistent processing quality when deburring and edge rounding


The SBM-XL S2B2 grinding and deburring machine is designed for edge rounding and oxide layer removal from steel and stainless steel parts in one operation. The LISSMAC system is suitable for processing laser parts.

By removing the oxide layer, the sheet metal parts are perfectly prepared for subsequent processes such as coating. The technology gives improved surface quality on steel parts. The system also guarantees consistent processing quality when deburring and edge rounding. The processing units of the double-sided grinding and deburring machine can be switched on and off separately. The mechanical process also ensures optimal ergonomics for deburring and edge rounding, making the job easier for the operator.

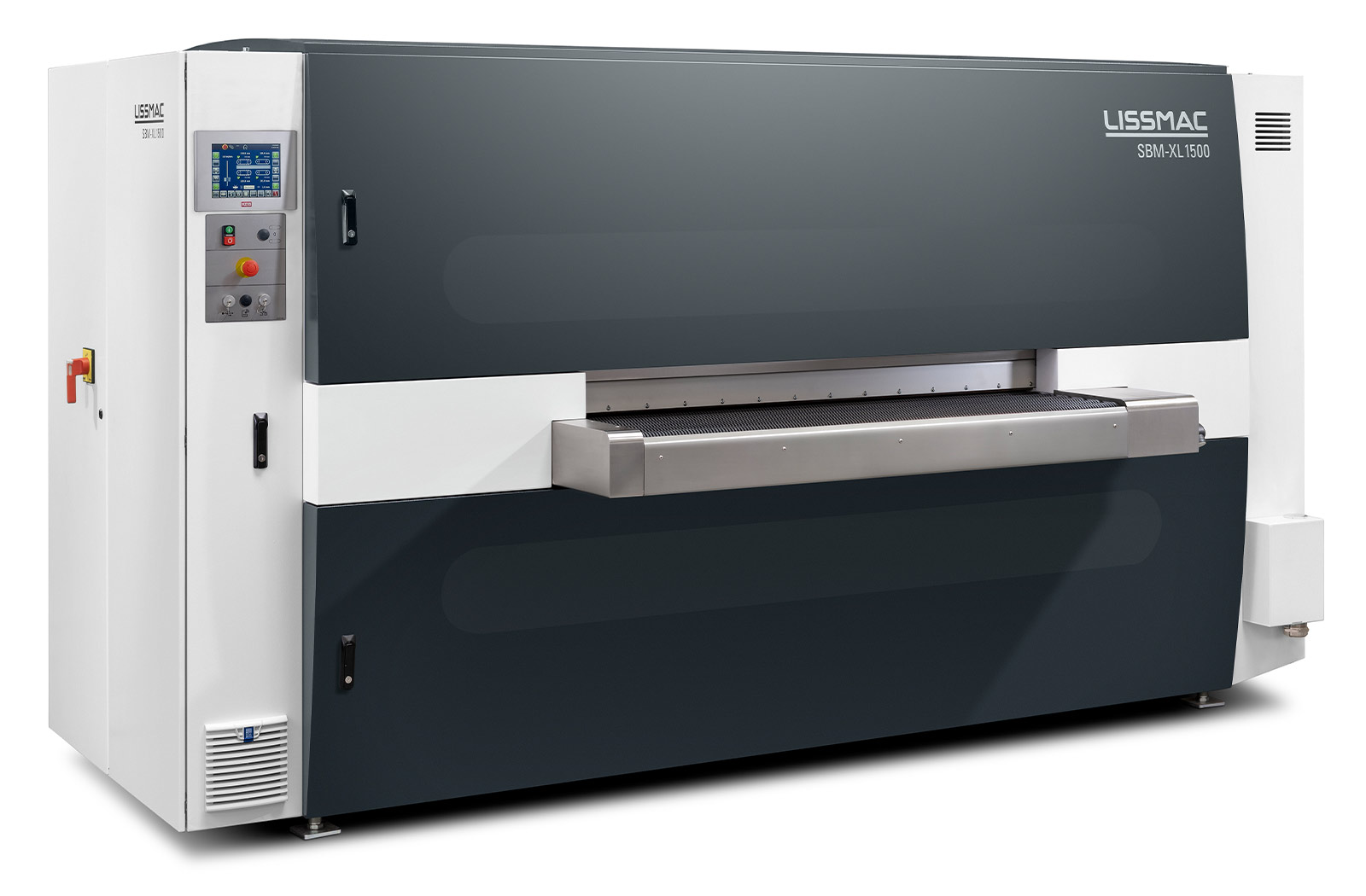

SBM XL S2B2 Blech bearbeiten Kanten verrunden Entgratmaschine Schleifmaschine oxidschicht 1

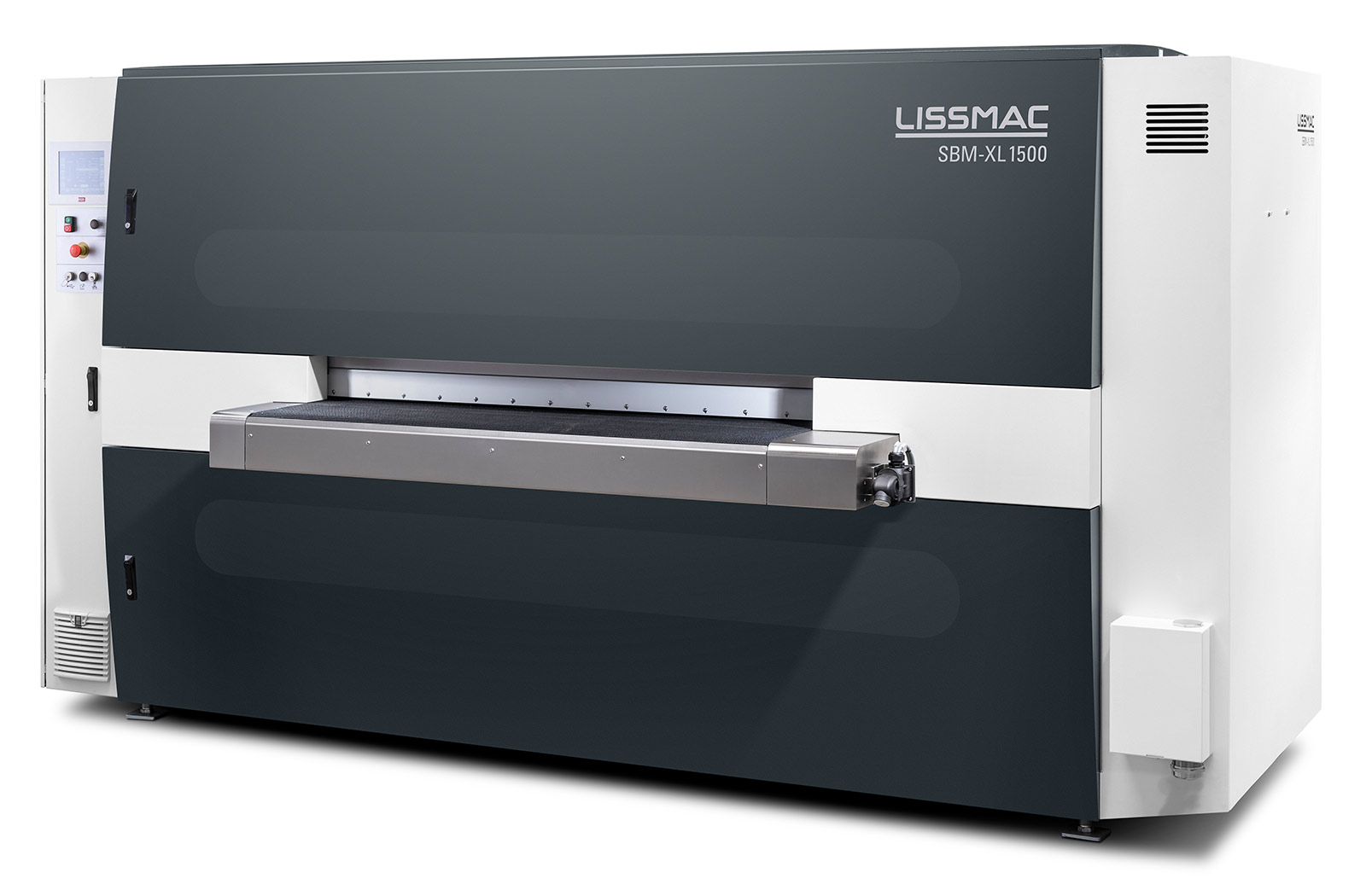

SBM XL S2B2Blech bearbeiten Kanten verrunden Entgratmaschine Schleifmaschine oxidschicht 2

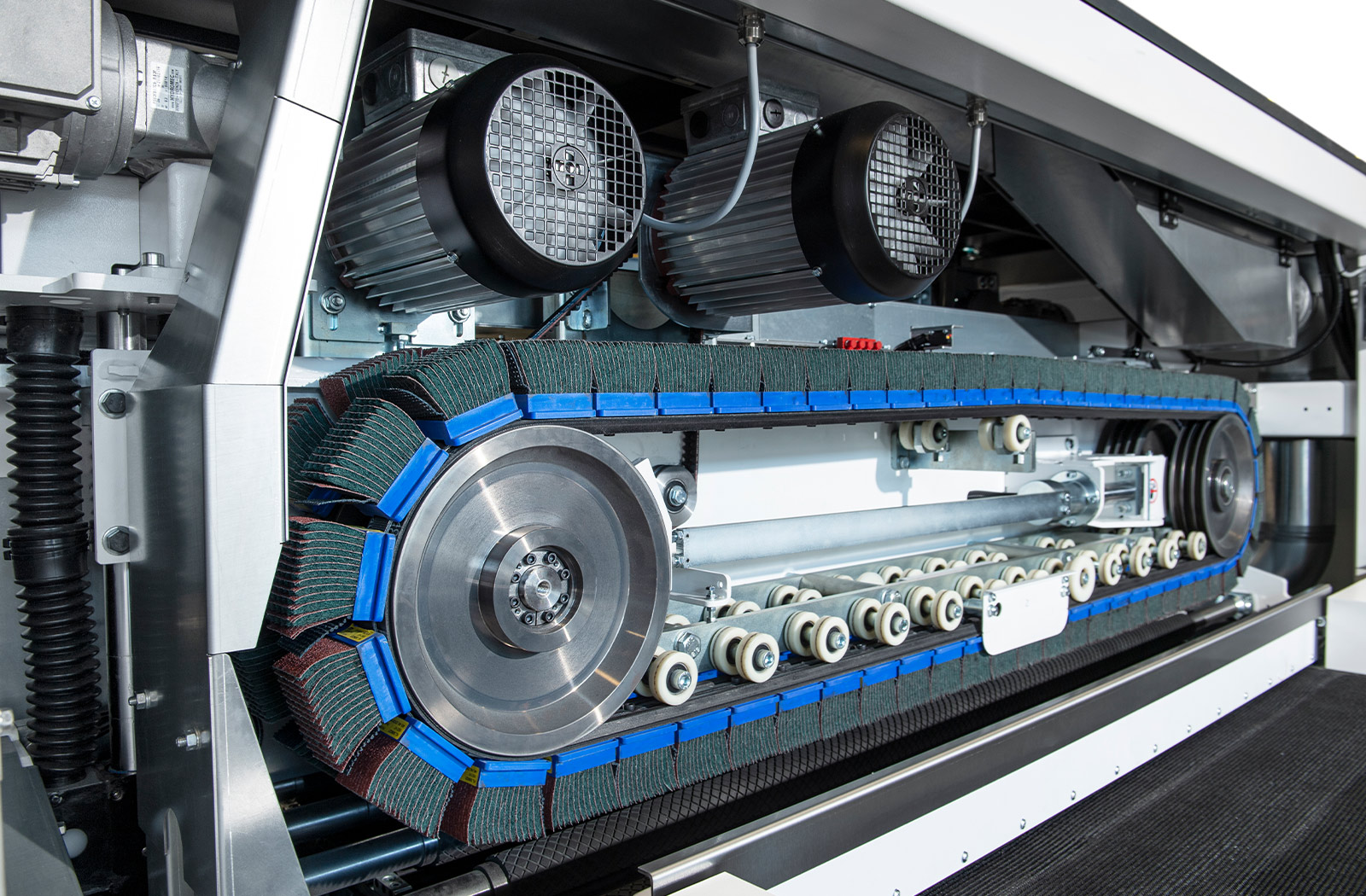

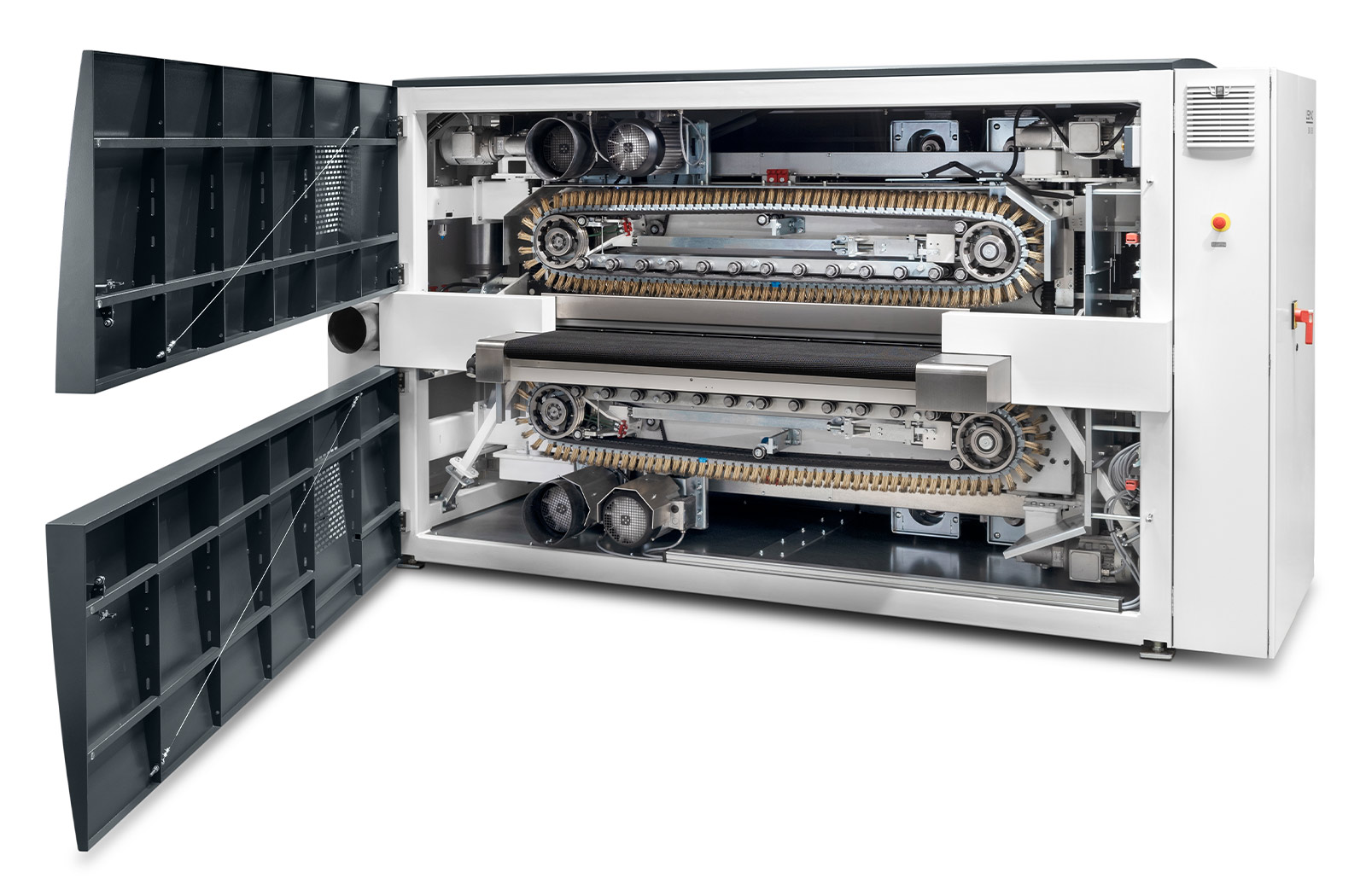

SBM XL S2B2 Blech bearbeiten Kanten verrunden Entgratmaschine Schleifmaschine oxidschicht geöffnet hinten

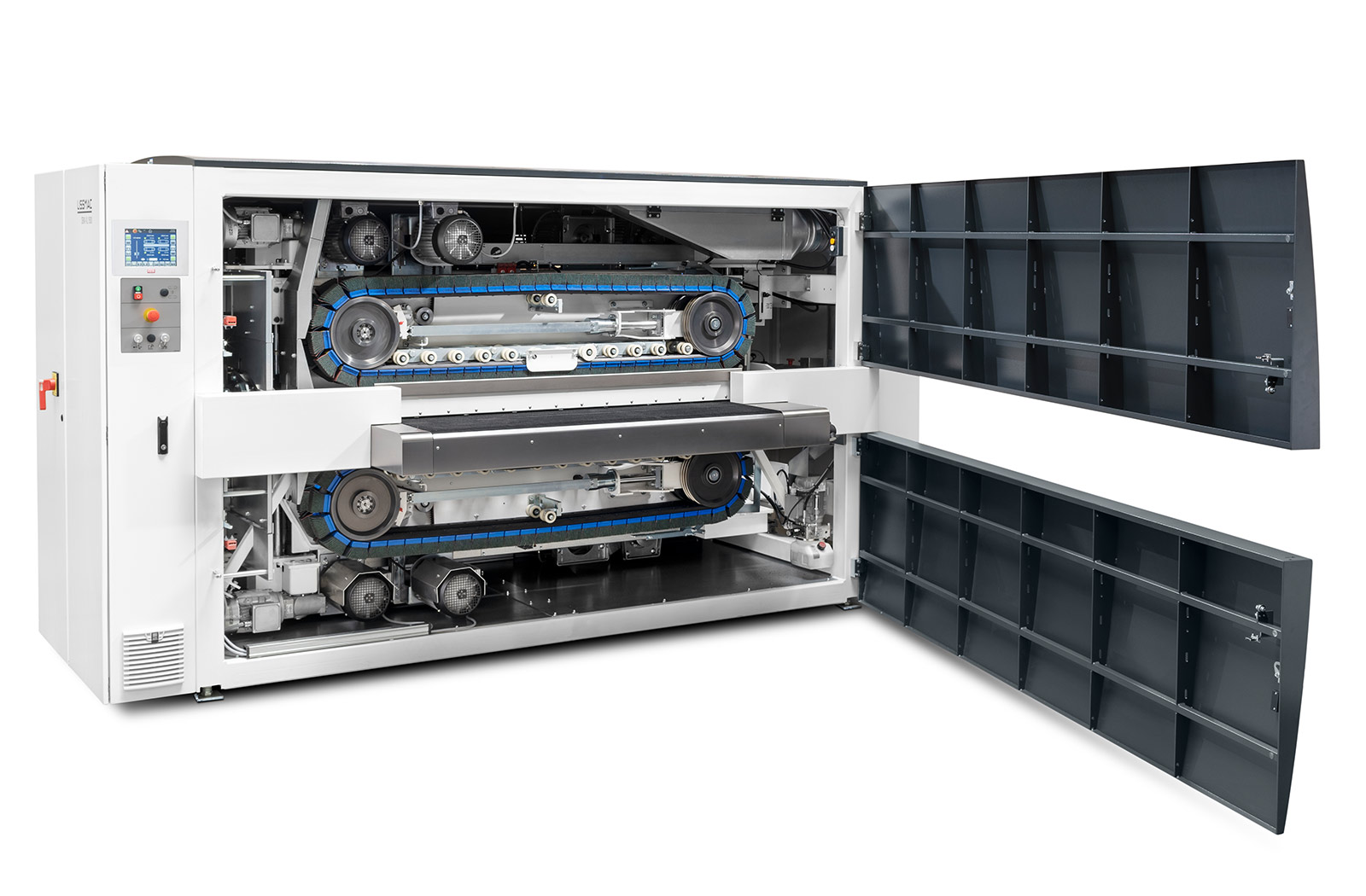

SBM XL S2B2 Blech bearbeiten Kanten verrunden Entgratmaschine Schleifmaschine oxidschicht geöffnet vorne

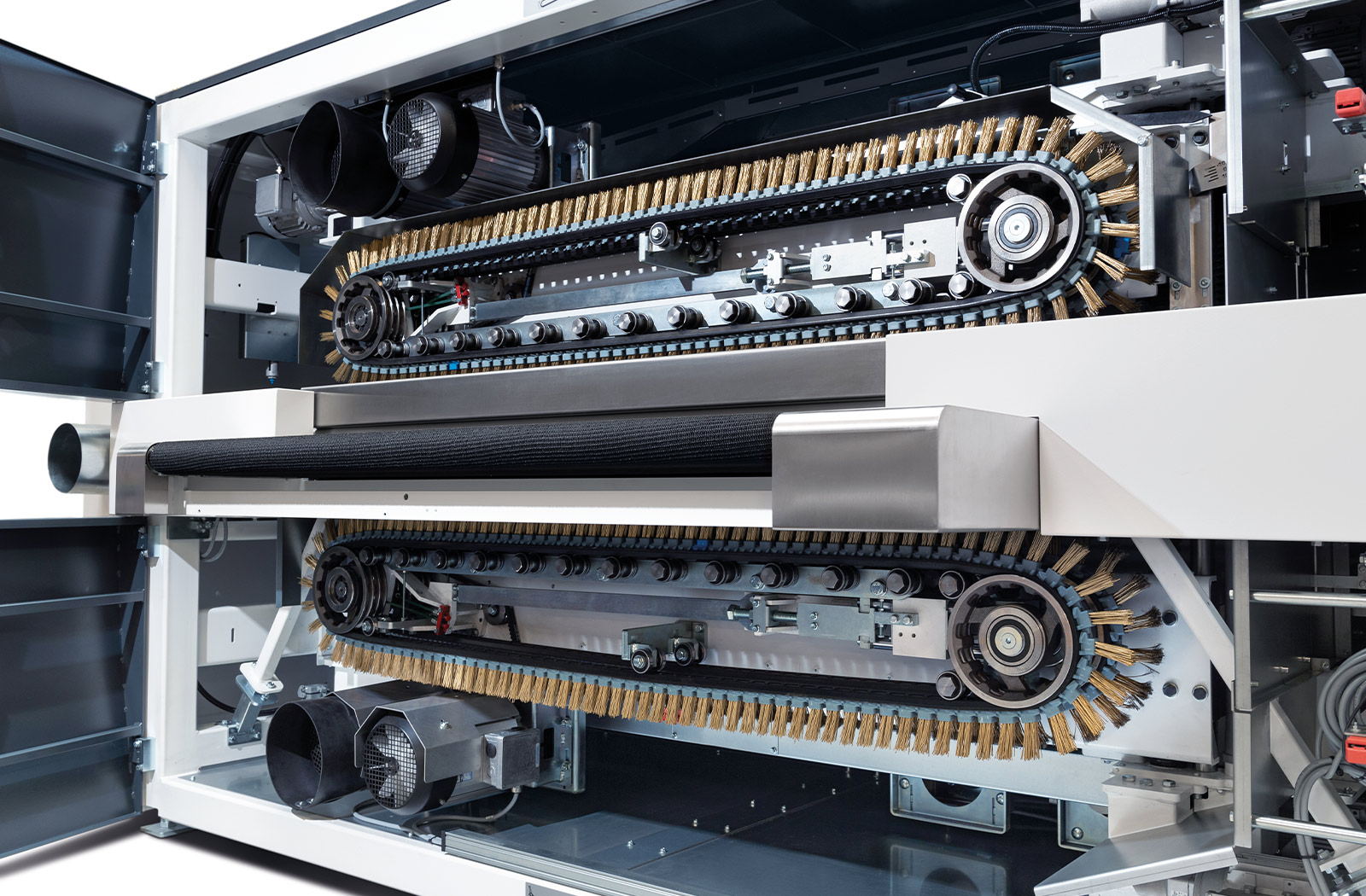

SBM XL S2B2 Blech bearbeiten Kanten verrunden Entgratmaschine Schleifmaschine oxidschicht B Agggrate
SBM XL S2B2 Blech bearbeiten Kanten verrunden Entgratmaschine Schleifmaschine oxidschicht S Agggrate 3

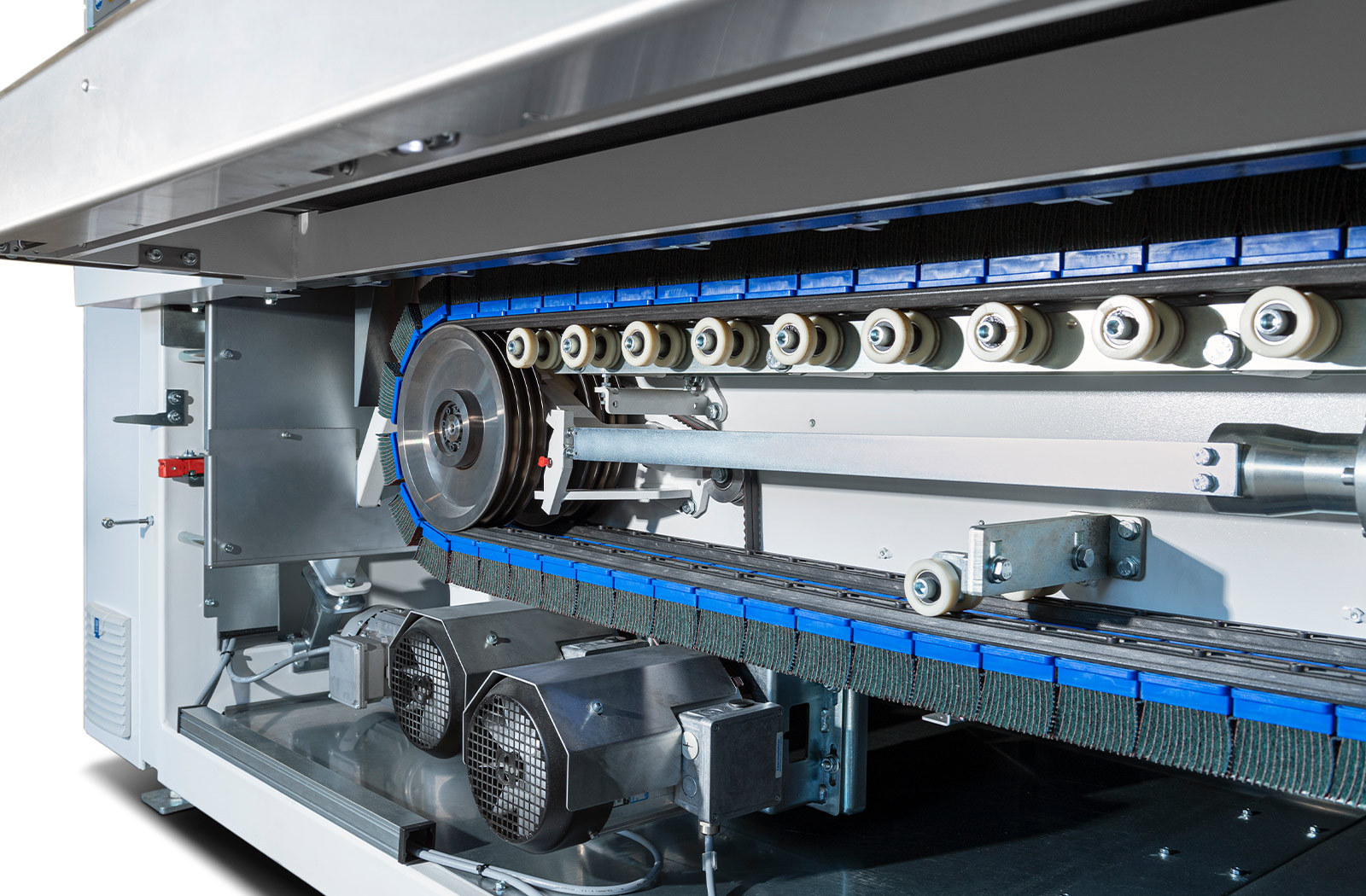

SBM XL S2B2 Blech bearbeiten Kanten verrunden Entgratmaschine Schleifmaschine oxidschicht S Agggrate 4
Technical data
SBM-XL S2B2
working width max.
1500 mm
workable material thickness
0.5 - 50mm
load
300 kg/rm
voltage
400 V / 50 Hz
network structure
3~ PEN / 3~ PE+N
total current consumption
82 A
total power
44.5 kW
insulation class
IP 42
infinitely variable feed speed
0 - 4 m/min.
adjustment of material thickness
electric
adjustment of tools
electric
weight approx.
4200 kg
dimensions (W/D/H ) approx.
3600/2100/2000 mm
SBM-XL S2B2 USA
working width max.
1500 mm (2-40 / 2-60 inch)
workable material thickness
0.5-50 mm
(0.02-1.97 inch)
load
300 kg/rm (661 lbs)
voltage
480 V / 60 Hz
network structure
3~ PEN / 3~ PE+N
total current consumption
72.5 A
total power
47.5 kW
insulation class
IP 42
infinitely variable feed speed
0-4 m/min.(0-13 ft/min)
adjustment of material thickness
electric
adjustment of tools
electric
weight approx.
4200 kg (9260 lbs)
dimensions (W/D/H ) approx.
3600/2100/2000 mm
(142/83/80 Inch)
Further information
  • Edge rounding and oxide removal of laser cut parts
  • Two-side edge rounding and oxide removal saves the cost intensive turning of often very heavy workpieces or machining of parts twice
  • Consistent edges on all outside and inside contours
  • Dry operation
  • Simple, intuitive operation
  • The processing units can be individually adjusted or turned on and off electrically.
  • Maximum productivity while maintaining machining quality
  • The cross-machining principle guarantees optimum tool utilisation over the entire working width.
  • Faster and simpler tool change within just a few minutes
  • Modular and compact in modern machine design - smaller footprint
  • Improved work environment - Reduction of dust, dirt and noise
  • Optionally available: Conveyor Technology; Handling Systems, Automation; Custom Solutions
  • For repeated customer requirements, processing parameters can be called up quickly and easily through predefined programs.
  • Up to 60 % work time savings compared to one-side processing grinding machines
