FS 20 D (-VE)

The clever powerhouse in the compact class with a diesel engine. The manoeuvrable joint cutter scores with time and money savings, both in confined spaces and in heavy work.

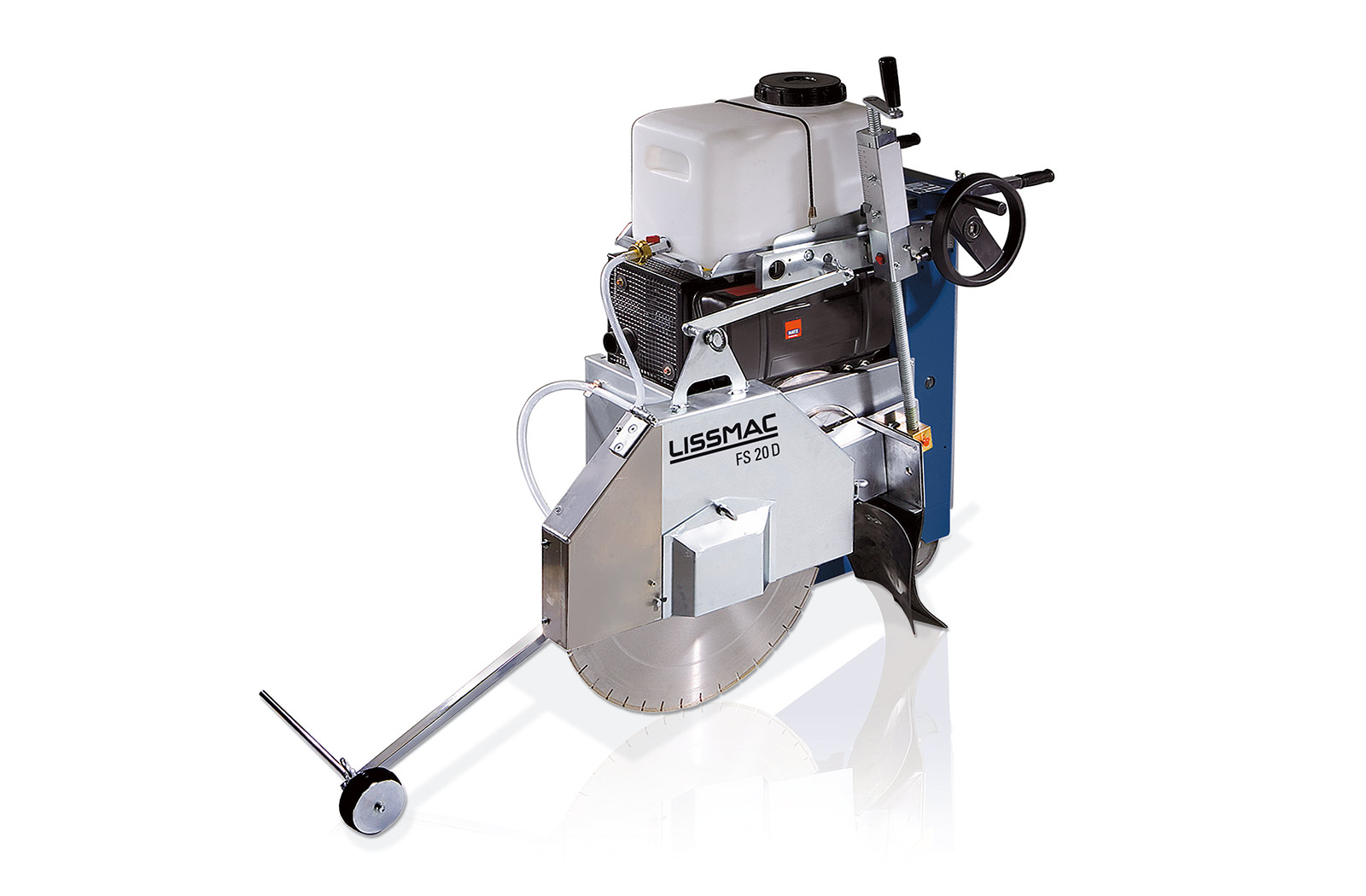

Compact in size and as rugged as a big saw - the extremely powerful diesel floor saw FS 20 D performs above its weight class with impressive technology. The FS 20 D VE version is equipped with an electric feed instead of the hand crank feed, which makes the floor saw ideally suited for heavy cutting work in concrete and asphalt. Driven by an extremely reliable Hatz Stage V diesel engine with 10.1 kW / 13.7 PS, the floor saw achieves cutting depths of up to 220 mm (optionally 270 mm). The saw blade diameter is 600 mm (optionally 700 mm).

The powerful and compact diesel floor cutter is designed for the efficient creation of kerfs, expansion joints and contact loops as well as for repair work. The agile machine proves its special talents when cutting joints on narrow pavements and on cramped construction sites. The diesel floor saw is equally suitable for demanding applications in asphalt and concrete and proves its strengths in road construction and civil engineering as well as in landscaping and is a reliable machine for tool rental applications. The hand crank feed of the diesel joint cutter enables an even, straight cut and guarantees longer saw blade service lives and thus lower cutting costs. With the version FS 20 D VE with electric feed, even particularly difficult work can be carried out without tiring the operator. The saw blade is lowered and raised smoothly. This prevents damage to the cutting tool. The front of the saw hood can be folded up for overcuts. The rear wheel sits outside of the saw cut, so re-cutting kerfs can be carried out without any problems. Also extremely practical: the saw arm, which can be swivelled by 180 °, eliminates the tedious changeover between left and right cuts.

Compact and clever - this diesel floor saw contains the concentrated know-how and practical experience of LISSMAC. Let yourself be inspired by the possibilities of the FS 20 D (-VE):

FS20D Dieselfugenschneider Vorschubfugenschneider fugen schneiden Fugenschneider
FS20D Dieselfugenschneider Vorschubfugenschneider fugen schneiden Fugenschneider Haube hochgeklappt
FS20 D Dieselfugenschneider Vorschubfugenschneider fugen schneiden Fugenschneider Motorseite
Technical data
FS 20 D (-VE)
cutting depth standard / optional
220 mm / 270 mm
cutting depth setting
stepless threaded spindle with depth gauge
saw blade diameter standard / optional
600 mm / 700 mm
arbor size
25.4 mm
drive motor
HATZ Diesel
output power max.
10.1 kW / 13.7 hp
emission level
stage 5
feed standard
hand crank
feed FS 20-VE
electric/hand crank
saw blade speed
1920 1/min
left/right cut
yes
dimensions (L/W/H)
1100/750/1100 mm
weight
263 kg
weight VE
268 kg
FS 20 D USA
cutting depth
8.66 inch
cutting depth setting
stepless threaded spindle with depth gauge
saw blade diameter max.
23.62 inch
arbor size
1.00 inch
drive motor
HATZ Diesel
output power max.
10.1 kW / 13.7 hp
feed standard
hand crank
feed FS 20-VE
electric/hand crank
saw blade speed
1920 1/min
left/right cut
yes
dimensions (L/W/H)
43.31/29.53/43.31 inch
weight
579.82 lbs
weight VE
590.84 lbs
Further information
  • Particularly compact construction
  • The hand cranked travel enables a uniform cutting rate, guaranteeing a straight saw cut, thereby extending the life of the saw blade – lower cutting costs.
  • The FS 20 is also available with electric power travel, ideally suited to heavy cutting in concrete or asphalt.
  • For longer service life – the vertically positioned engine guarantees permanent oil supply in every cutting situation
  • Lowering and raising the saw blade is done smoothly, therefore preventing damage to the saw blade
  • Clear and ergonomic arrangement of the instruments
  • Blade guard front can be raised for intersections
  • The rear wheel sits outside of the saw cut - this makes recutting of cut joints easy.
  • The LISSMAC swivel arm principle saves time and Money - long times for converting from left to right cut are eliminated by the 180 degree swivel saw arm
  • Large water and fuel tanks reduce down-time to a minimum.
  • Parking brake, water saving flange spraying and saw cutting depth indicator are standard equipment.
