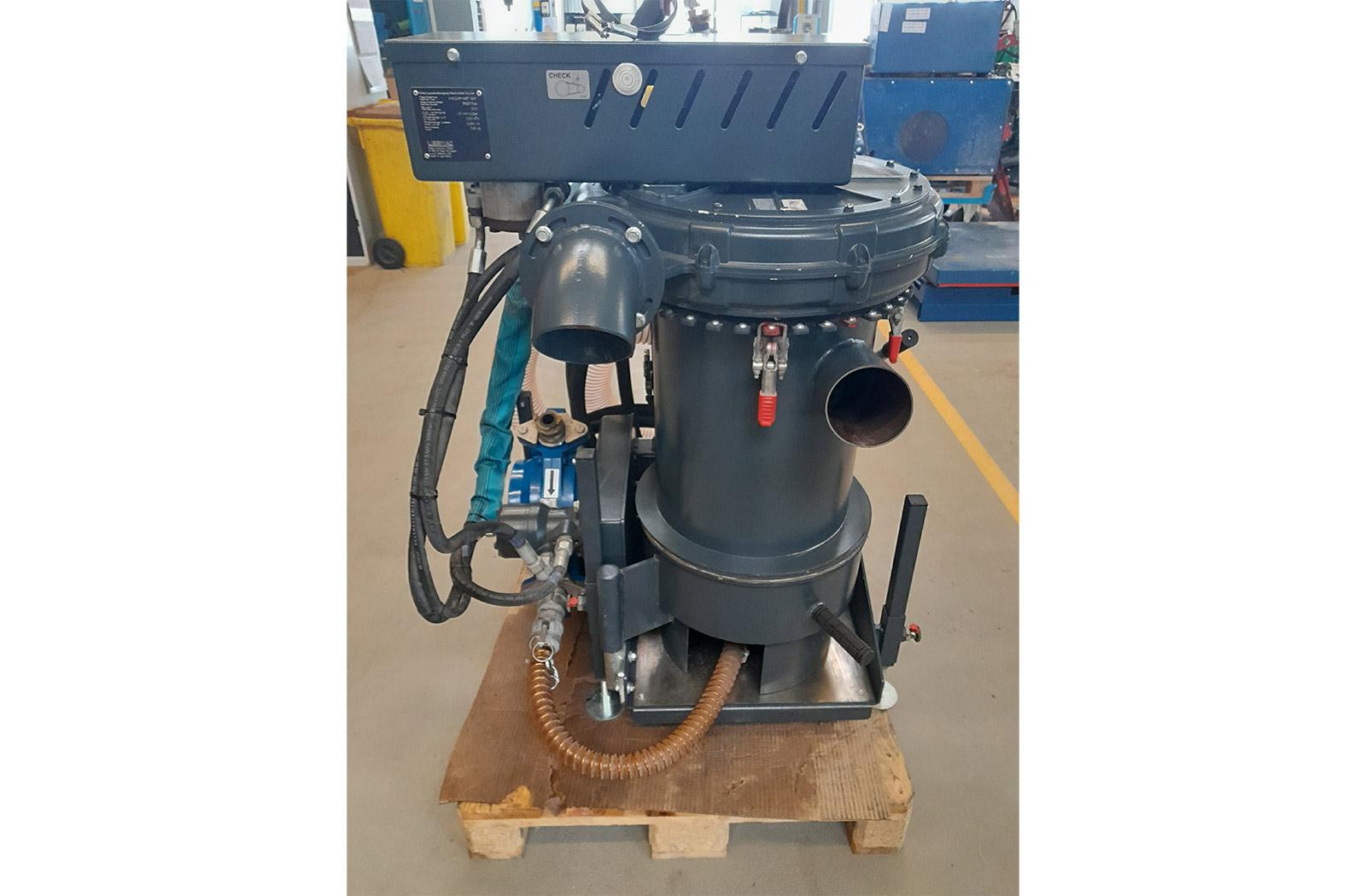

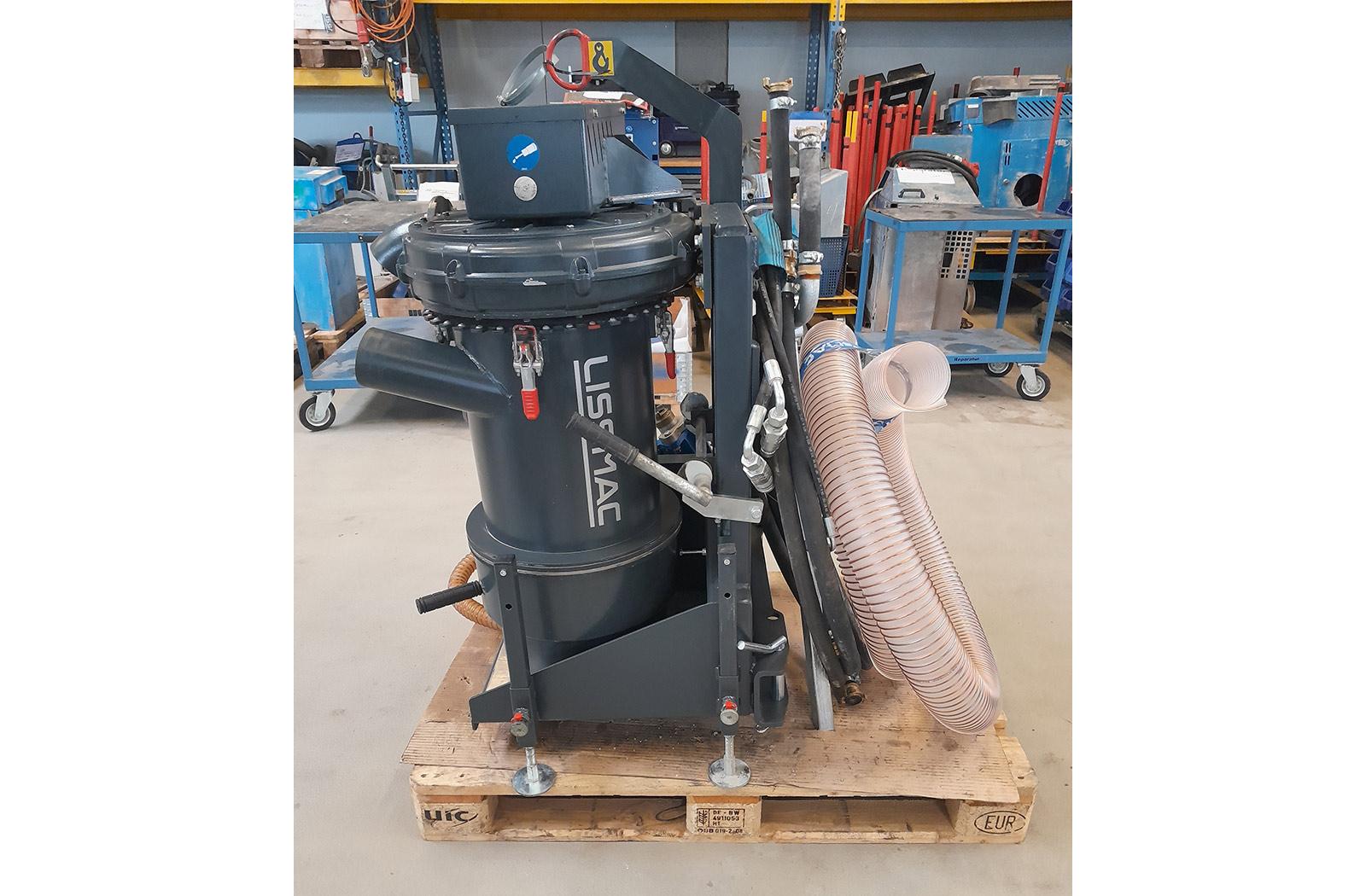

VACUUM-WET 500 (Ref. No. SN037366)
More efficiency for the premier class of floor saws. UNICUT 520 and 600 and the MULTICUT 900/905 benefit from fully hydraulic driven sludge extraction, which can be installed quickly and easily.
Contact salesTechnical data

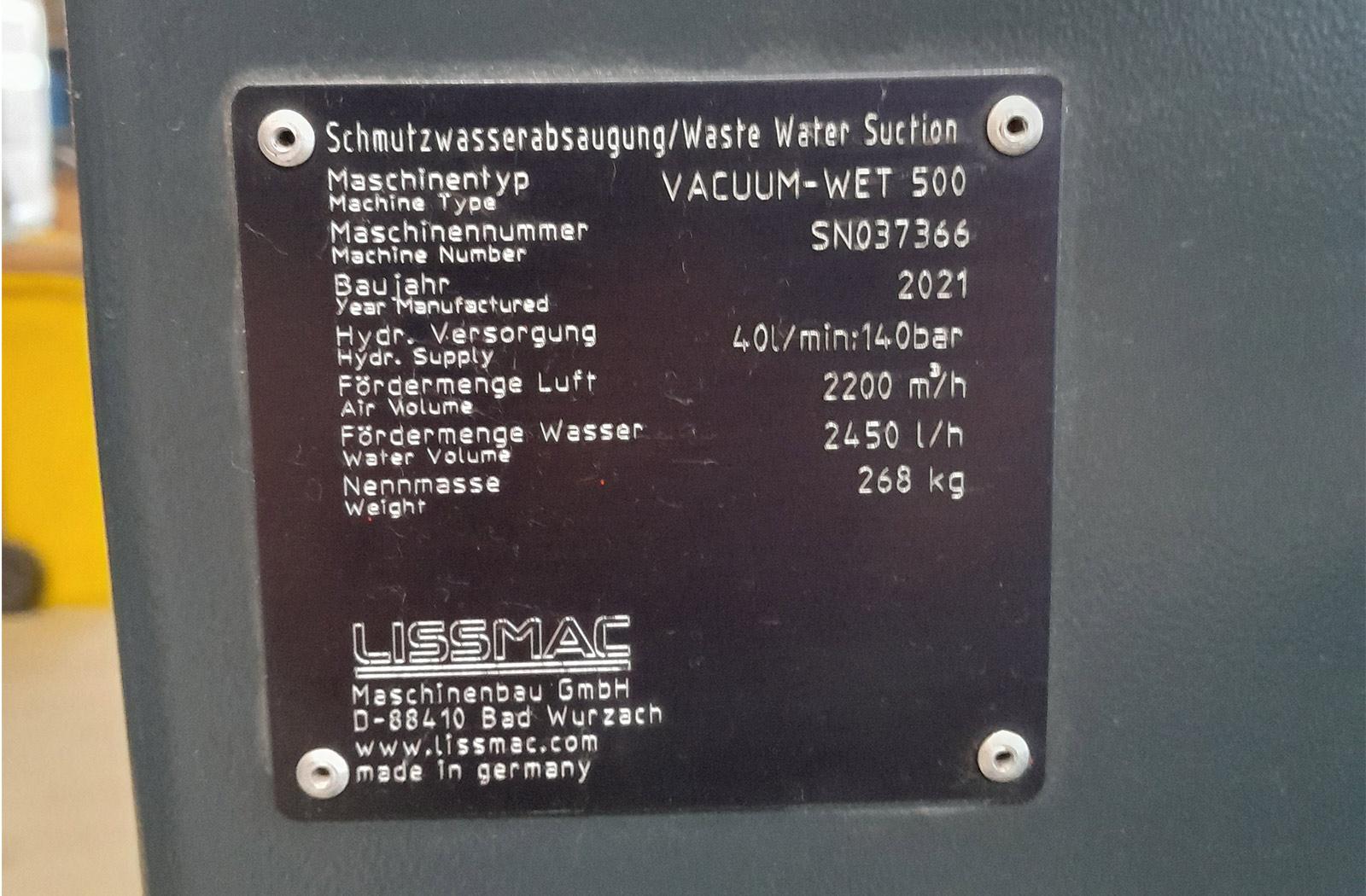

VACUUM-WET 500
container for coarse parts
25 l
sieve for coarse parts
Ø 5 mm
required hydraulic supply
Q=40 l/min;140 bar
air delivery rate
2200 m³/h
water delivery rate
2450 l/h
power consumption
9 kW
fresh water connection
GEKA-coupling, min. ¾“, length max. 40 m
waste water connection
GEKA-coupling, min. 1“, length max. 40 m
exhaust hose connection
Ø 100 mm, length max. 10 m
dimensions (L/W/H)
880/820/1300 mm
total weight
268 kg
Further information
- Year of manufacture: 2021
- Signs of wear and storage marks
