Floor Saw FS 20 D (-VE) (Ref No. SN060374)

The clever powerhouse in the compact class with a diesel engine. The manoeuvrable joint cutter scores with time and money savings, both in confined spaces and in heavy work.

Contact sales
FS 20 D
FS 20 D
FS 20 D
FS 20 D
FS 20 D
FS 20 D

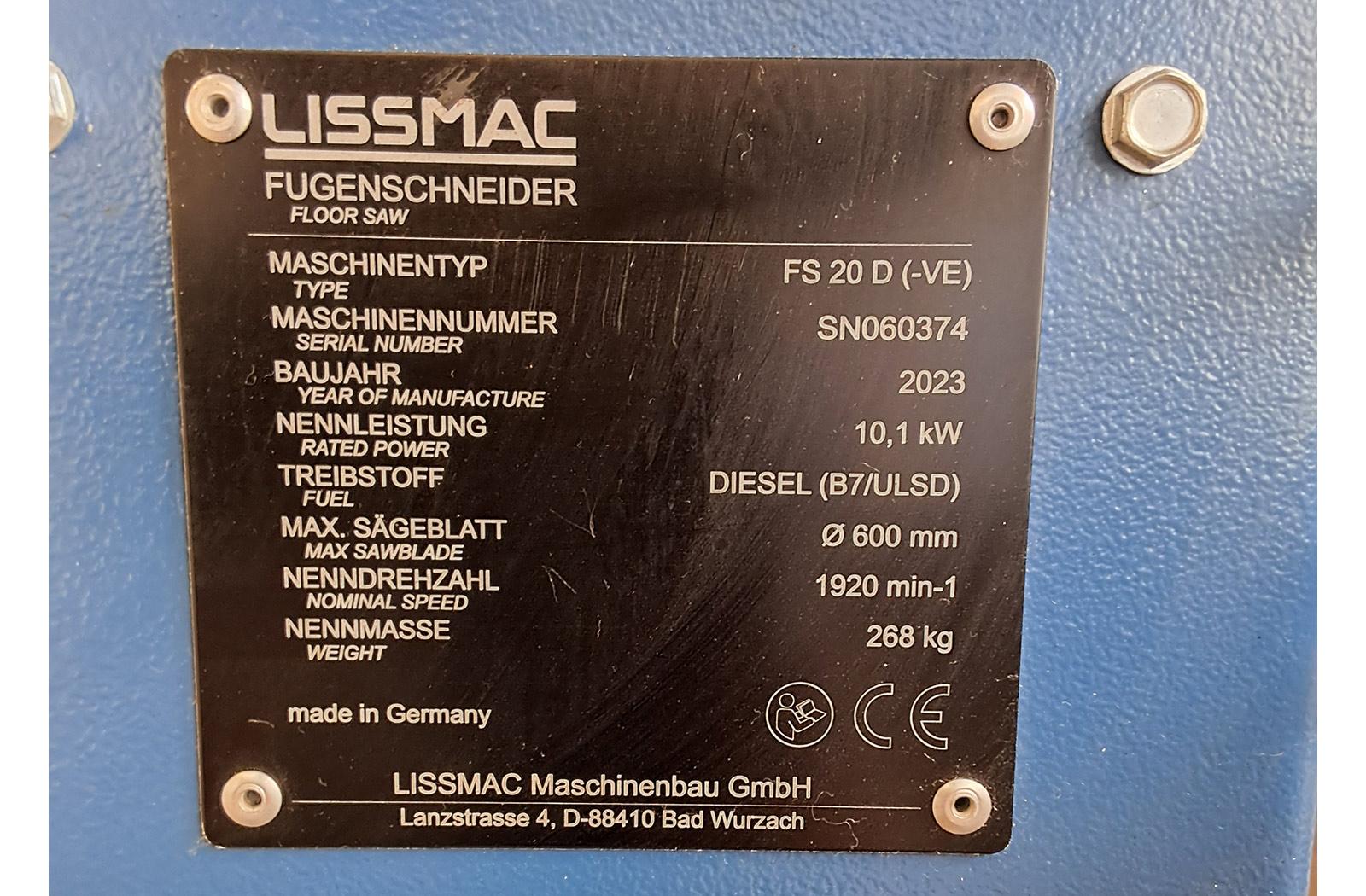

FS 20 D Typenschild
Technical data
FS 20 D (-VE)
cutting depth standard / optional
220 mm / 270 mm
cutting depth setting
stepless threaded spindle with depth gauge
saw blade diameter standard / optional
600 mm / 700 mm
arbor size
25.4 mm
drive motor
HATZ Diesel
output power max.
10.1 kW / 13.7 hp
emission level
stage 5
feed standard
hand crank
feed FS 20-VE
electric/hand crank
saw blade speed
1920 1/min
left/right cut
yes
dimensions (L/W/H)
1100/750/1100 mm
weight
263 kg
weight VE
268 kg
Further information
  • Machine type: Floor saw
  • Year of manufacturing: 2023
  • Machine condition: Signs of wear and storage marks
Downloads
Datenblatt FS 20 D/VE Ref-Nr. SN060374PDF / 0,3 MB
