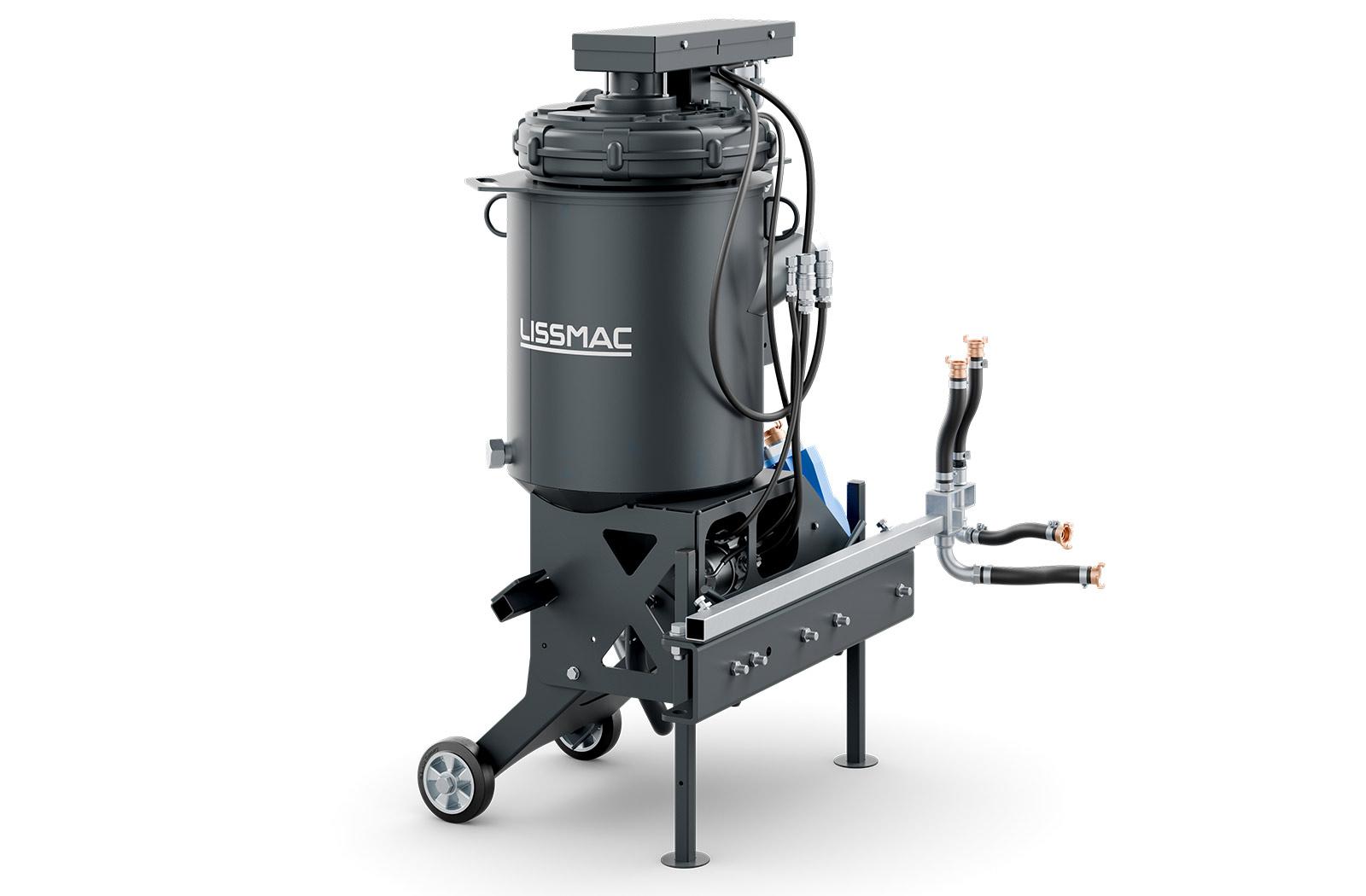

VACUUM-WET 501
More efficiency for the premier class of floor saws. The UNICUT 610 benefits from fully hydraulic driven sludge extraction, which can be installed quickly and easily.
The VACUUM-WET 501 dirty water extraction unit is designed for quick and easy attachment to the UNICUT 610 floor saws using an attachment kit. The slurry extraction unit for floor saws operates as a closed system, which is driven by the floor saw via a hydraulic interface.
The wet extraction system for floor saws removes the cutting slurry during sawing, with the advantage that the saw blade does not have to cut any additional material. Extracting the material reduces friction on the blade and thus reduces the temperature at the saw blade. The hydraulic dirty water extraction system achieves flow rates of 2,200 m³/h (air) and 2,450 l/h (water).
The use of mobile sludge extraction for wet cutting work conserves resources by minimising fresh water consumption. The cutting/cooling water sludge can be collected, cleaned and reused as cutting/cooling water.
Contactverdeling
Technische gegevens
Verdere informatie
- Fast and easy attachement to the floor saw
- All parts can be quickly removed for cleaning
- Simple emptying of the wet container using eccentric lever
- Wet container with fine hole Ø 5 mm sieve easy and quick to clean
- Sieve made completely of stainless steel (service life)
- Compact design with high ground clearance
- Closed system that is directly installed on the floor saw and driven by a hydraulic interface of the machine
