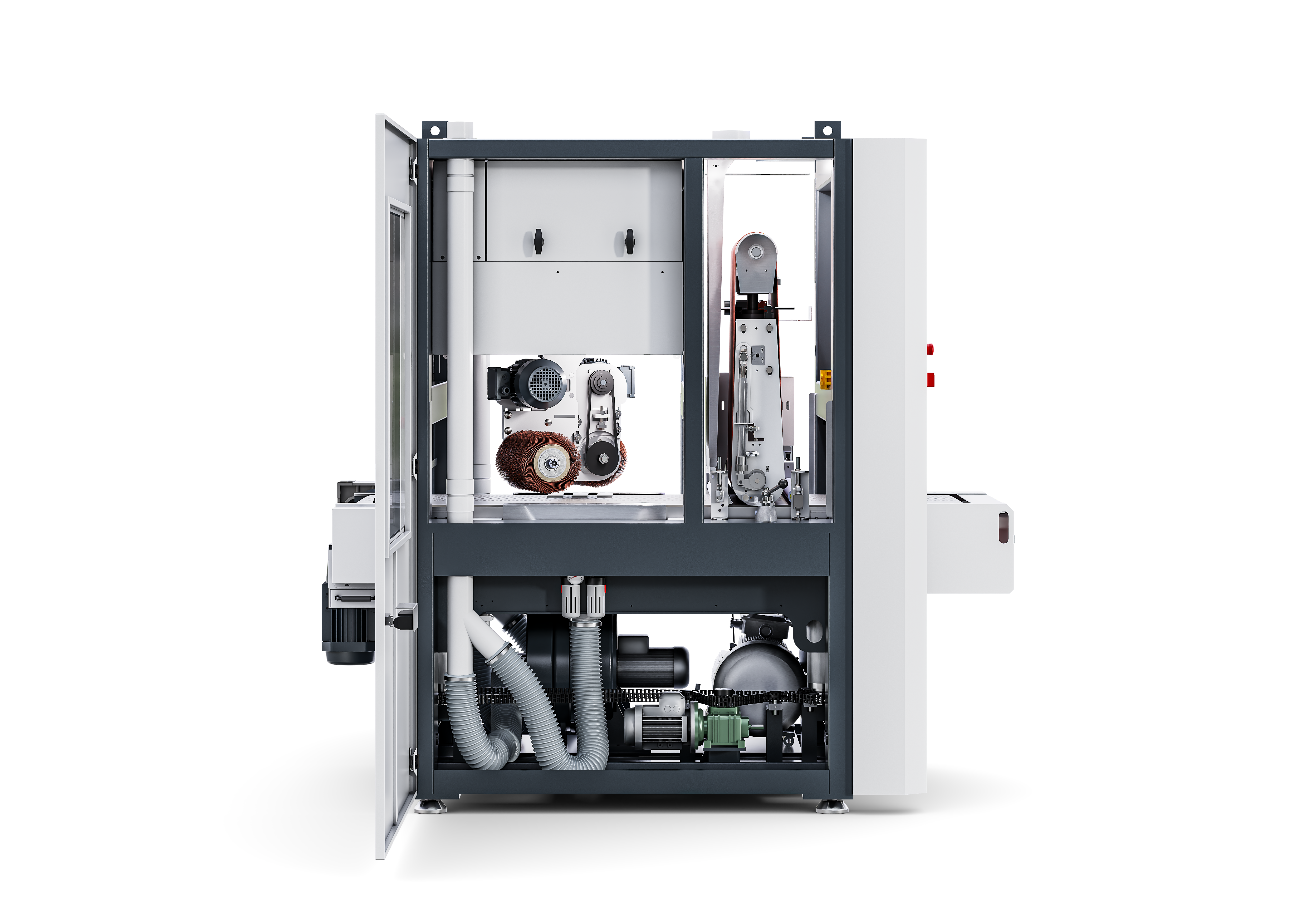

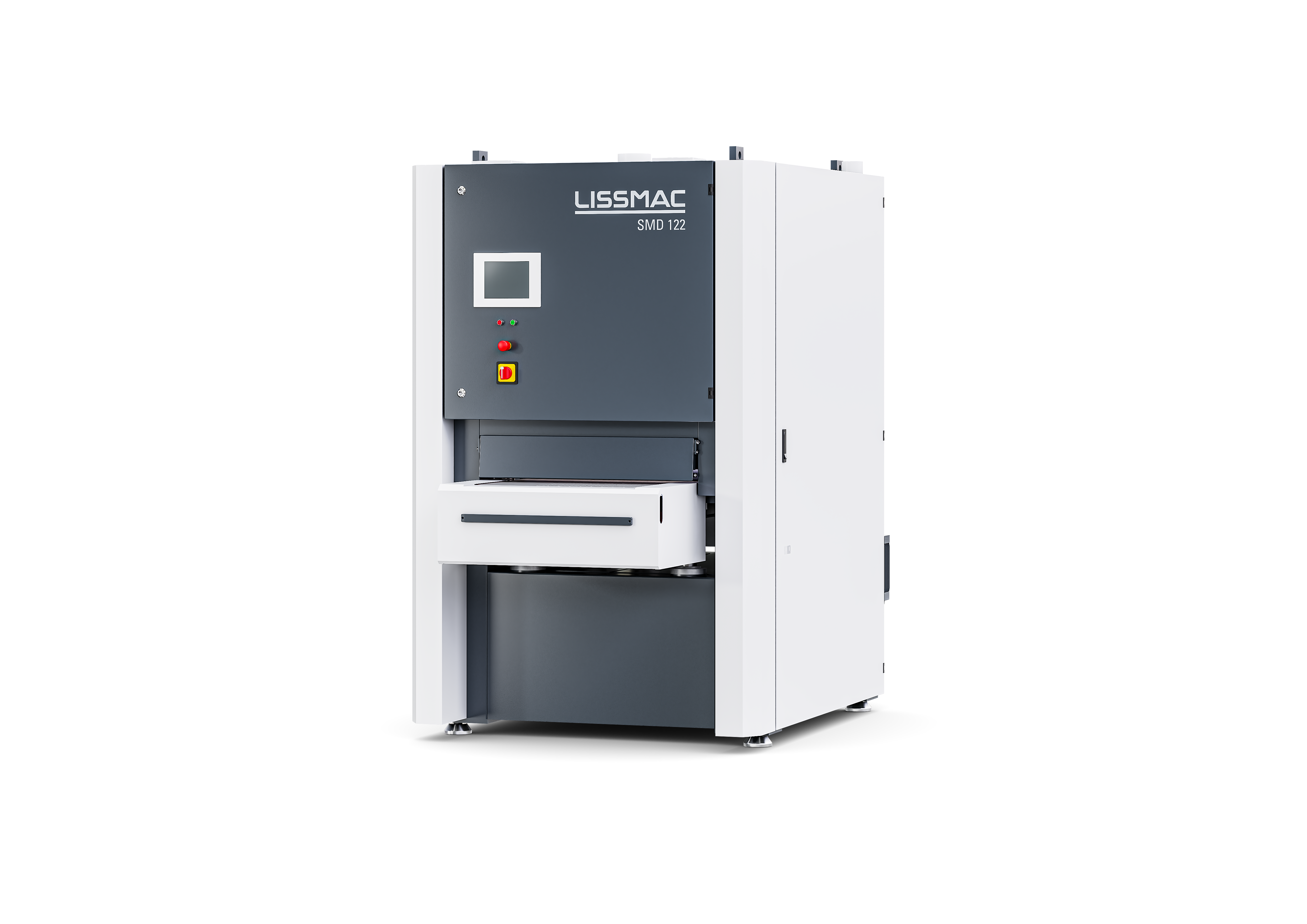

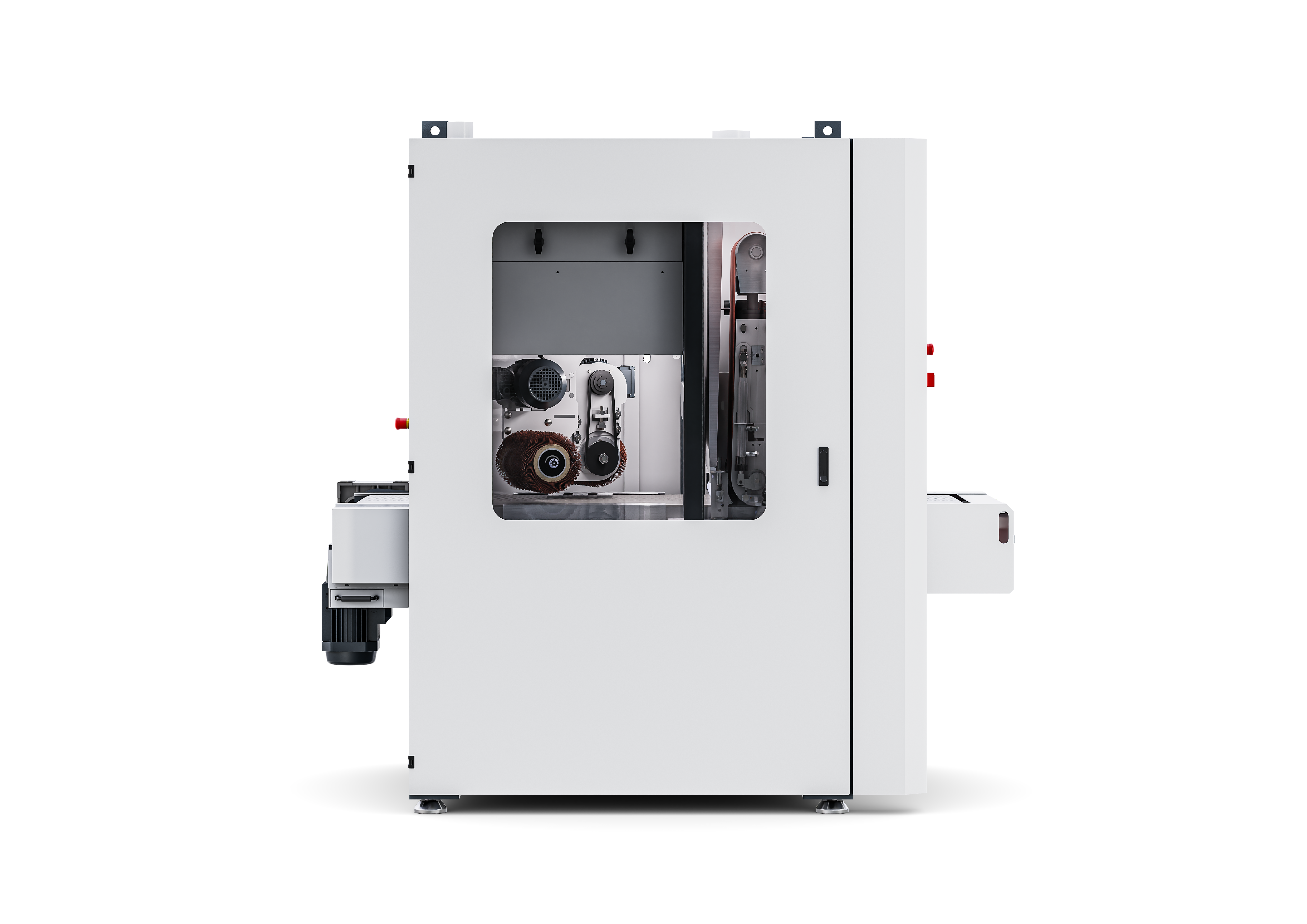

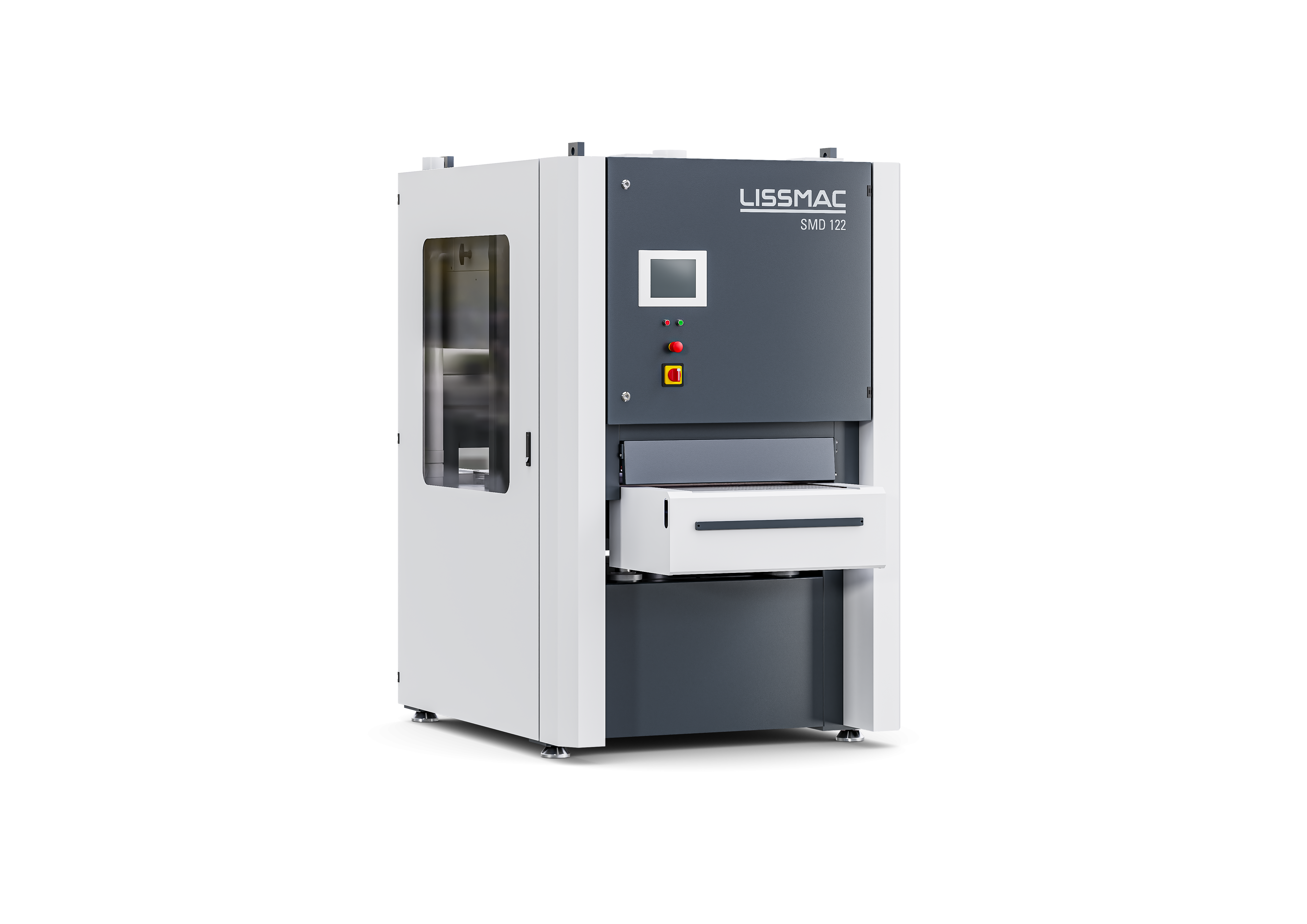

SMD 122 RE
The SMD 122 RE from LISSMAC is the compact solution for deburring, edge rounding, and processing steel, stainless steel, and aluminum.
The hybrid conveyor table with magnetic and vacuum technology reliably holds a wide range of workpieces – including small parts. Variable-speed processing units and electronic settings allow quick and precise adjustment for different applications.
Thanks to its compact design, intuitive operation, easy accessibility, and quick-change tool system, the SMD 122 RE can be efficiently integrated into existing production processes.
Dati tecnici
SMD 122 RE
Working width
630 mm
Magnetic track
150 mm wide in the left-hand table area
Material thickness
1 - 100 mm
Load
300 kg/linear m
Smallest part
50 x 50 mm
Feed speed
0.5 - 6 m/min
Voltage
400 V / 50 Hz
Table height
950 mm
Floor space
2.93 m²
Total current consumption
46 A
Total power
22 kW
Insulation class
IP 42
Weight
approx. 2500 kg
Ulteriori informazioni
- Compact grinding and deburring machine with an exceptionally small footprint
- Unique combination of magnetic and vacuum technology in a single machine table
- Suitable for machining steel, stainless steel, and aluminum
- Reliable machining, even of small parts
- Frequency-controlled vacuum for workpiece clamping tailored to specific needs
- Integrated vacuum generation for an exceptionally compact machine design
- Speed-controlled processing units
- Electronic height adjustment of the processing units
- Electronic adjustment of sheet thickness and tools
- Quick and easy tool change
- Easy access for quick cleaning and material change
- Intuitive operation via touch panel
- High flexibility for different materials and applications
- Small footprint for easy integration into existing production processes
