PB 80


posizione precisa e veloce per la pallettizzazione, de pallettzzazione e ordine picking flessibile ideale per la presa di utensili presse e centri di lavoro. Con esatto montaggio de componenti in linea di produzione.

Distribuzione dei contatti
PB 80

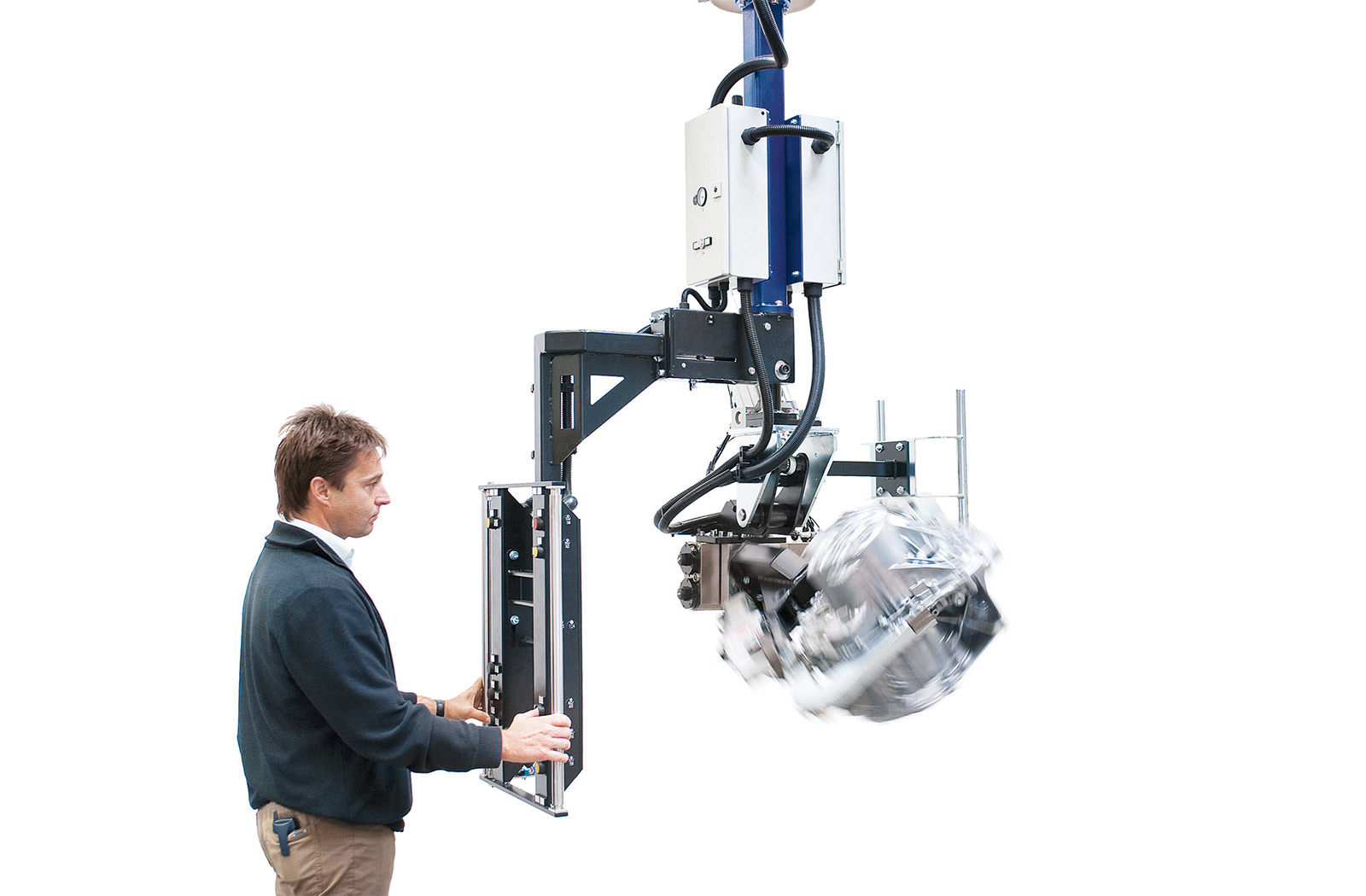

PB 80 Bediener

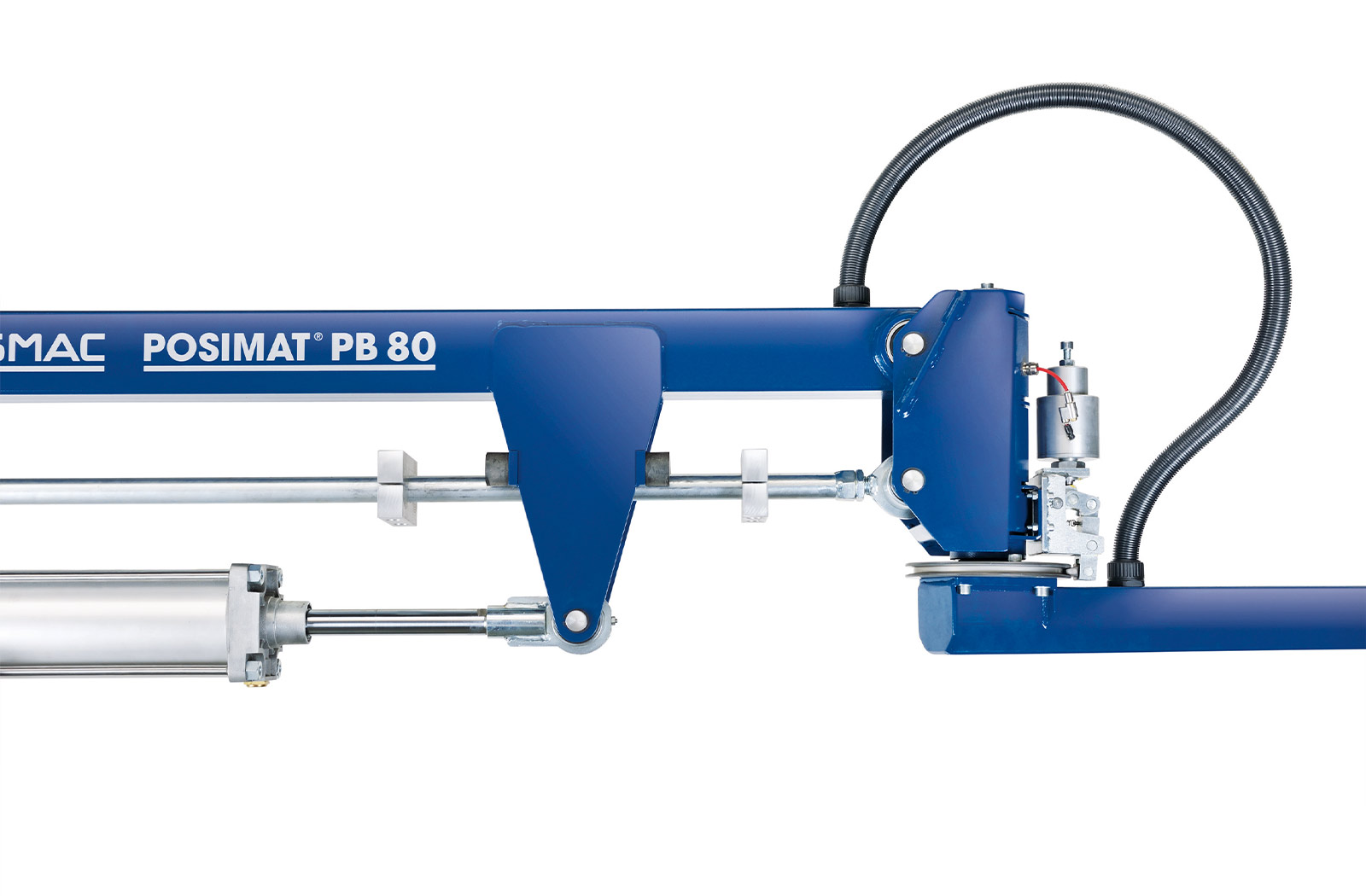

PB 80 Detail
Dati tecnici
PB 80
Load-carrying capacity without load suspension devices, without counterweight
80 kg
Load-carrying capacity without load suspension devices, with counterweight
120 kg
Hoisting height
1600 mm
Working area, standard
4600 mm
Working area up to max.
5400 mm
Standard jib length
2300 mm
Jib length up to max.
2700 mm
Hoisting arm length
1543 mm
Design height of machine without pillar
675 mm
Design height OK hoisting device on pillar
3500 mm
Pillar height
2000 mm
Range of rotation, main axis, hoisting arm
continuous
Pivot area axis folding arm
320 °
Range of rotation, pivo joint
320 °
Jib counterweight
750 mm
Max. torque, axis
2.750 Nm
Max. torque, axis
1.250 Nm
Max. torque, axis
400 Nm
Drive
pneumatic
Hoisting speed
0-30 m/min.
Min. operating pressure
6 bar
Air consumption / max. stroke.
28 NL
Noise level
78 db (A)
Ambient temperature
-15 / + 70 °C
Dead weight without counterweight and pillar
150 kg
Counterweight
120 kg
Ulteriori informazioni
  • highest productivity and reliability
  • ergonomic, rational operation without strain
  • precise and exact positioning of components
  • weightless, non-swinging handling due to automatic weight counterbalance
  • individual gripper systems
  • easy operability
  • optional load-control directly on the goods being handled
  • optional lifting/lowering function for absolutely load-free lifting and lowering
  • high safety standard
  • upright, suspended or movable version
  • comprehensive accessories for optimal configuration
  • connectable backlash reduction on rotation axes 1 and 2
